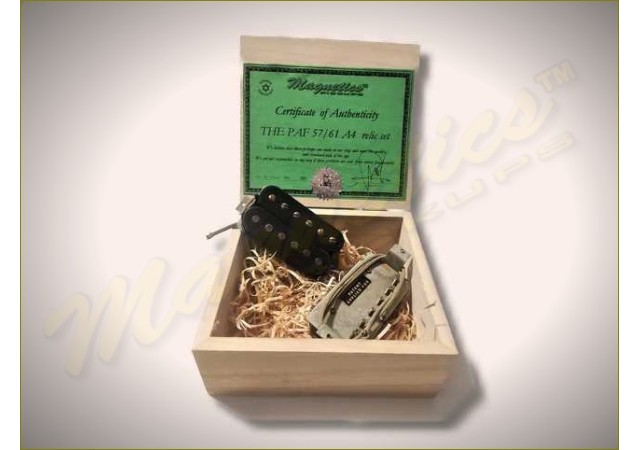

Magnetics™ CSHTP4
| • | Magnet(s) | : | Custom degaussed AlNiCo IV, long type, rough |
| • | Pole(s) | : | Screws & Slug |
| • | Baseplate | : | Custom 49.2 Nickel silver baseplate, long legs |
| • | Bobbin(s) | : | Butyrate |
| • | Thermoformed covers | : | No |
| • | Shim | : | maple wood |
| • | B/screws | : | Brass Phillips |
| • | O/wire | : | 22AWG genuine braided PushBack |
| • | Windings | : | genuine Elektrisola purple/dark 42" plain enamel, unbalanced coils, random stop |
| • | Wax | : | Unwaxed |
| • | Flat/Staggered | : | Fixed & Adj. screws |
| • | Internal Shielding | : | No |
| • | Output | : | 330 MVolts circa |
| • | Freq. Res. | : | 3.7 KHz circa |
| • | DC Res. | : | 7.6 K circa |
| • | Colors | : | Black, Cream, Zebra |
| • | Relic | : | Available, ask for it (+ 20 euro) |
| • | Cover | : | Available, nickel, ask for it (+ 20 euro) |
| • | Notes | : | Real PAF replica, OEM design available |
